☑ Parallel Plate Capacitor Calculator Inches

Plate distance in meter c. Parallel plate capacitors are the type of capacitors which that have an arrangement of electrodes and insulating material dielectric.

Capacitors And Dielectrics

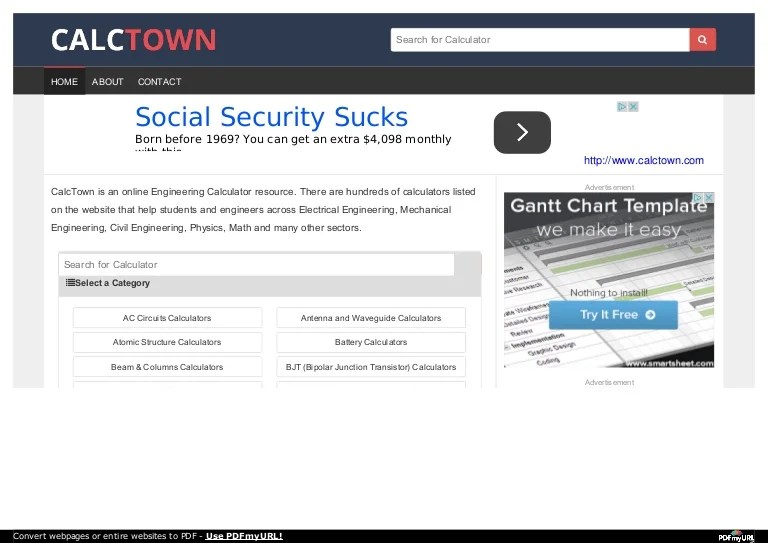

Most Reliable Online Engineering Conversion Calculator Calc Town

Capacitors Capacitance Calculations Formulas Equations

Rectangular conductor resistance for a rectangular cross section conductor such as a pcb track showing the formula used.

Parallel plate capacitor calculator inches. The formula for the capacitance of a parallel plate capacitor is. 885 10 12 fm k. C k e 0 ad where.

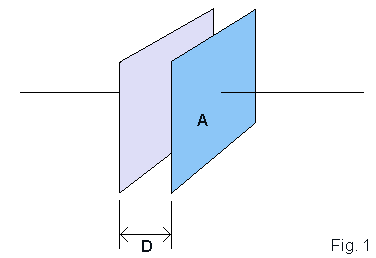

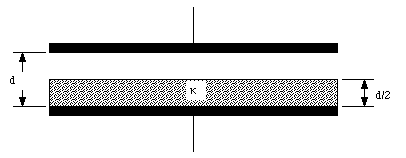

The diagrams show parallel plate capacitors with different shaped plates one rectangular and one circular. This acts as a separator for the plates. For example lets calculate the capacitance of a parallel plate capacitor with a plate area of 025 square millimeters and a distance between the plates of 0005 millimeters.

In this calculator c is the capacitance in picofarads k is the dielectric constant a is the area of one plate in square inches d is the depth thickness of the dielectric in inches and n is the number of plates in the capacitor. The two conducting plates act as electrodes. Engineering index electronics index.

E r relative permitivity of the dielectric less commonly known as k the dielectric constant. Parallel plate capacitor capacitance calculator. There is a dielectric between them.

Rectangular capacitor for a rectangular parallel plate capacitor with edge effect showing the formula used. The first calculator is metric whereas the second is inches. Relative dielectric constant calculator for a circular capacitor.

E 0 8854x10 12 fm faradsmeter vacuum permitivity aka the permitivity of free space. The dielectric constant dimensionless a. This is also known as the parallel plate capacitor formula.

The two plates of parallel plate capacitor are of equal dimensions. Where c capacitance of parallel plate capacitor a surface area of a side of each of the parallel plate d distance between the parallel plates e 0 absolute permittivity and e r relative permittivity of the medium or dielectric in between the parallel plates. Small valued capacitors can be etched into a pcb for rf applications but under most circumstances it is more cost effective to use discrete capacitors.

This calculator computes the capacitance between two parallel plates. It is to determine the capacitance of a parallel plate capacitor. Increase calculator linear interpolation calculator dog age calculator ideal gas law calculator earthquake seismometer calculator capacitor design formulas calculator lightning distance calculator child height predictor.

The capacitance caused by a pair of plates is calculated from the plate area and separation and the dielectric constant relative static permittivity of the medium between them. Plate area in m2 d. The parallel plate capacitor.

Capacitor in farat calculates the capacitance of a parallel plate capacitor whose opposing plates having same plate area and same small distance from each other. Well use a dielectric constant of 1. Cylindrical capacitor design equations formulas calculator.
